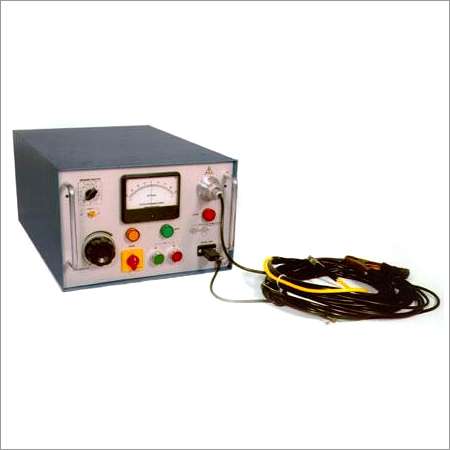

VLF Voltage Tester
X
VLF Voltage Tester Price And Quantity
- 1 Unit
- 225000 INR/Unit
VLF Voltage Tester Trade Information
- 1 Unit Per Day
- 2-3 Days
- All India
Product Description
Named as a most promising manufacturer, exporter, service provider and supplier, we are presenting an efficient array of VLF Voltage Tester. As the name suggests, this equipment is known for measuring the capacitive loading and has the capability to test cable of different length. Therefore, this has been designed by selecting excellent quality of raw material that is sourced from trustworthy vendors of the available market. For efficient operational life, VLF Voltage Tester is checked at each step of processing under the stern direction of our quality controller.
Key Features:
- Light weight
- Portable design
- Dimensional accuracy
Some benefits of Jupiter VLF - AC Hipots:
- Smallest, lightest weight AC-VLF Hipot availabel with the largest test load ratings.
- One piece portability.
- Simple and easy operation.
- 230 Vac. 50/60 Hz, Input line required.
- The VLF AC hipot does not generate harmful voids in the insulation through treeing.
- Harmful space charges dose not generated during testing.
- A true sinusoidal output voltage waveform is used.
- No traveling waves are generated during testing.
- Wavehape independent of capacitive loading between 0.01 and maximum load.
Additional test application:
- Rotating machinery-IEEE-433.
- Capacitors.
- Full red cable.
- Bishings and insulators.
- Transformers.
Need more information on VLF:
-
For more information on our VLF products and VLF testing, please contact us.
Specifications VLF-30 (30kV, 10uF):
| Input | 230V, 50/60Hz. |
| Output voltage and frequency | Sinusoidal, 0-30 kVac peak, 0.01 to 0.1 Hz. |
| Load rating | 10 uF |
| Duty | Continuous |
| Kilovoltmeter | 5" deflection 30-0-30 kVAC peak |
| Charging current meter | As per requirement |
| Modes | VLF AC & DC mode |
| Weight | 40kg. approx. |
| HV output cable | 10 mtr. with crocodile clamp. |
| Interconnect cable length | 4 Mtr. with sockets |
| Shorting stick | 2 Mtr., 2 Mtr. Lead with clam |
Specifications JLF 60 (60 kV, 10uF):
| Input | 230V, 50/60Hz. |
| Output voltage and frequency | Sinusoidal, 0-60 kVAC peak, 0.01 to 0.1 Hz. |
| Load rating | 10 uF |
| Duty | Continuous |
| Kilovoltmeter | 5" deflection 60-0-60 kVac peak |
| Charging current meter | As per requirement |
| Modes | VLF AC & DC mode |
| Weight | 40kg. approx. |
| HV output cable | 10 mtr. with crocodile clamp. |
| Interconnect cable length | 4 Mtr. with sockets |
| Shorting stick | 3 Mtr., 3 Mtr. Lead with clamp |
